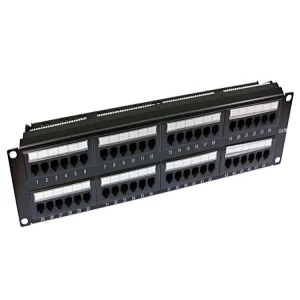

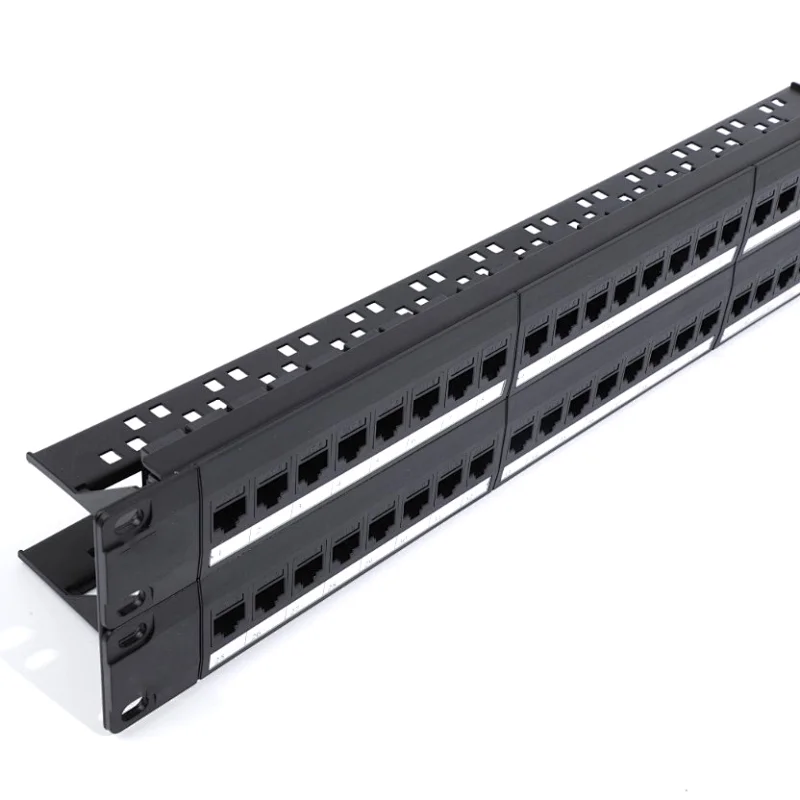

48 ports UTP Cat6 Patch Panel

• Place of Origin:Guangdong, China
• Brand Name:XXD/OEM/ODM
• Model Number:UTP Cat6 48ports
• Product name:48 ports RoHS FTP Cat6 Patch Panel
• Type::UTP Cat6 Patch Panel
• Port::12/24/48
• Color::white/black
• MOQ::10pcs
• Delivery time::5-7 working days
• Standard::RoHS
• IDC:110, Krone, Dual IDC
• Connector Port:RJ45 socket
• Size:19 Inches 1U

48 ports UTP Cat6 Patch Panel

48 ports RoHS UTP Cat6 Patch Panel

Specifications

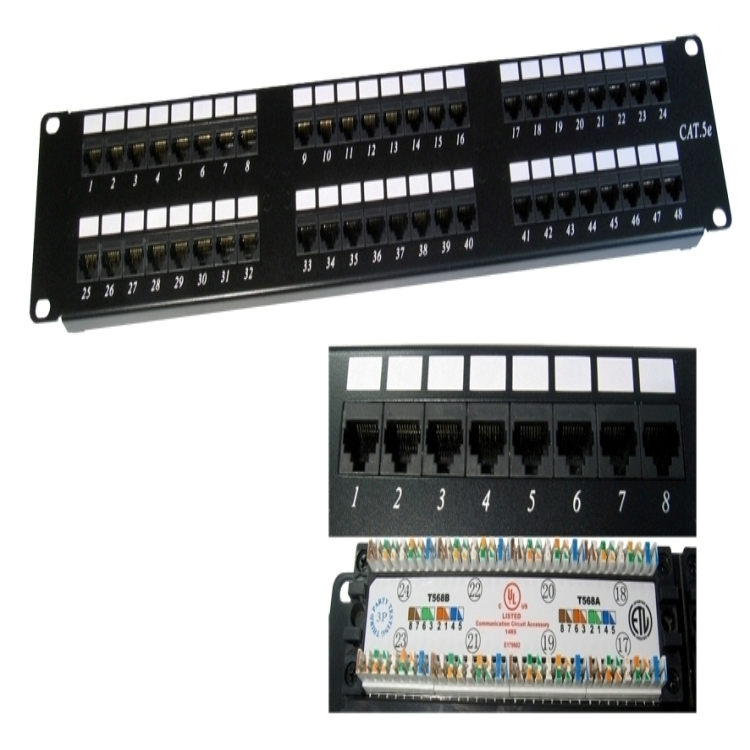

cat6 48port patch panel
1)Factory supply cat5e patch panel cat6 panel
2)24-port: 1U /48-port: 2U
3)CE/UL/ROHS
4)Life Guarantee

cat5e 24port patch panel

• IDC: silver-plated in surface of contact conductor
• Copper conductor: 0.4 to 0.7mm
• Maximum connections: >200 times
• 24-port: 19-inch/1U
• 48-port: 19-inch/2U
• Sockets maximum insertions: >750 times
• 8 lines pin: thickness of gold-plated (6, 15, 30 and 50u)
• Criteria: ISO9001

12-ports patch panel

• Type: CAT6 UTP
• Each port has the same structure to ensure the consistency of performance
• Standards: IEC 11801:2000 Class D and ANSI/TIA/EIA/568B, CAT6
• T568A and T568B punching sequence are both compatible

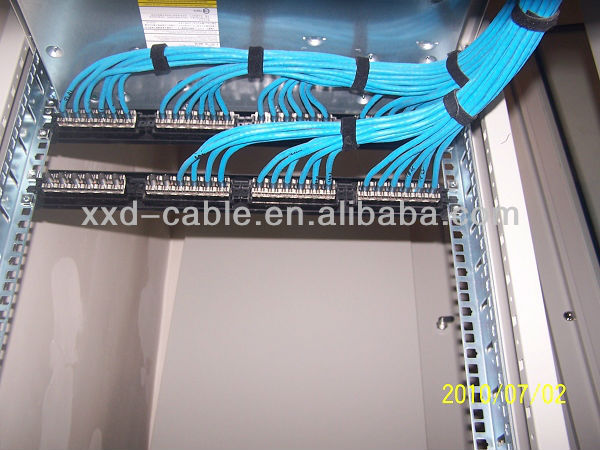

• Fits for horizontal distribution in equipment rooms and equipment connection
• Connectivity: FCC port for CAT6 UTP patch cord and IDC for horizontal distribution cables
• Compatibility: compatible for CAT6 UTP general cable distribution systems
• IDC: 110 or dual use types
• The entire outer frame is made of high carbon steel with plastic powder scalding
• RJ-45 jack frames: PBT, gold-plated phosphor bronze pins
• Shielded shell of RJ-45 jack: brass housing with nickel plating
• IDC clip: tinned phosphor bronze pins
• Fit for 22/23/24AWG cables
• Punching duration: 250 times
• FCC ports inserting duration: 750 times
• Cabling sequence: T568A&B
