Hot Sell Network Cable Factory UTP Cat6 calbe 305m box internet cable Cat5e cat 6 Lan Ethernet Cable
Product Description
Product Name
Hot Sell Network Cable Factory UTP Cat6 calbe 305m box internet cable Cat5e cat 6 Lan Ethernet Cable
Jacket Color
Yellow/Grey/Black...
Jacket
PVC/LSZH(5.5MM)
LENGTH
100M/250M/305M/500M
Insulation
HDPE
Conductors
Oxygen Free Copper/ CCA
MOQ
3000meters
Conductor OD
23/24/26/AWG
OEM/ODM
Acceptable
Features:
Standard
Application
ISO/IEC 11801-2Ed
10/100BASE (TIEEE 802.3)
ANSI TIA/EIA 568-B.2-1
ATM,TP-PMD,ANSI X39T.5(TP),LSDN,TP-DDI
EN 50173
ETHERNET,1000BASE-T
EN-50288-3-1
GIGABIT-ETHERNET
Electrical Specifications:
Dielectric Strength:
2.5KV dc-2seconds
Conductor Resistance:
Max 9.38 Ohm/100mt at 20 Centigrade
Max. Ring Resistance
16.8 Ohm/100mt at 20 Centigrade
Max. Mutual Capacitance
560pf/100mt
Max. Capacity Unbalance
1100pf/100mt
Standard Impedance
100¡À15 Ohm between 1Mhz and 100Mhz
Minimum Bending Radius
60mm
Working Temperatures
-20 ~ +60 Centigrade
Item No.
Packing Information
1.
100 mt/Reel
2.
305 mt/Reel (standard)
3.
500 mt/Reel
4.
1000 mt/Reel

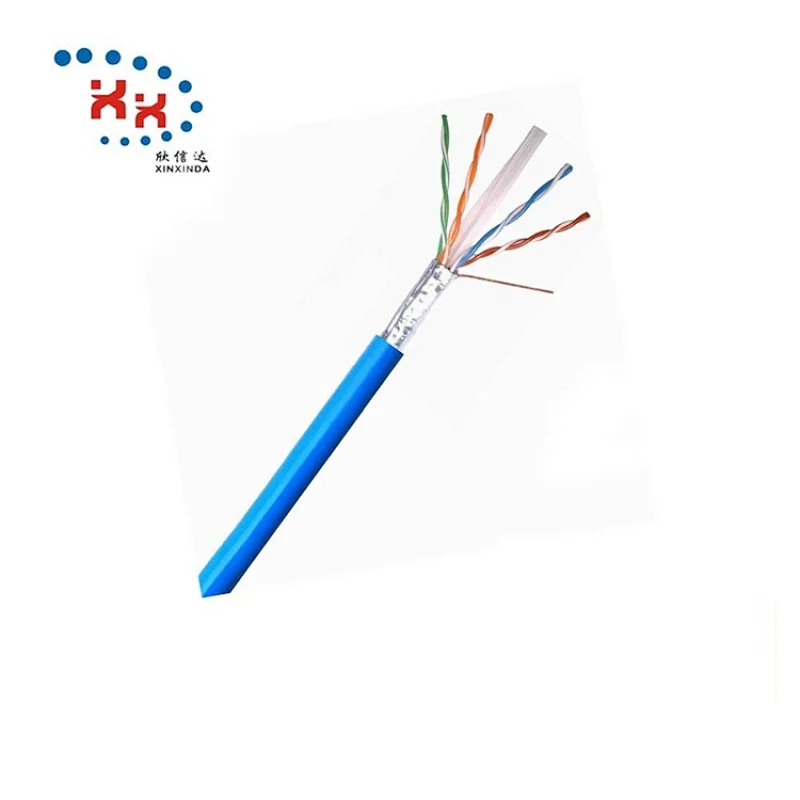

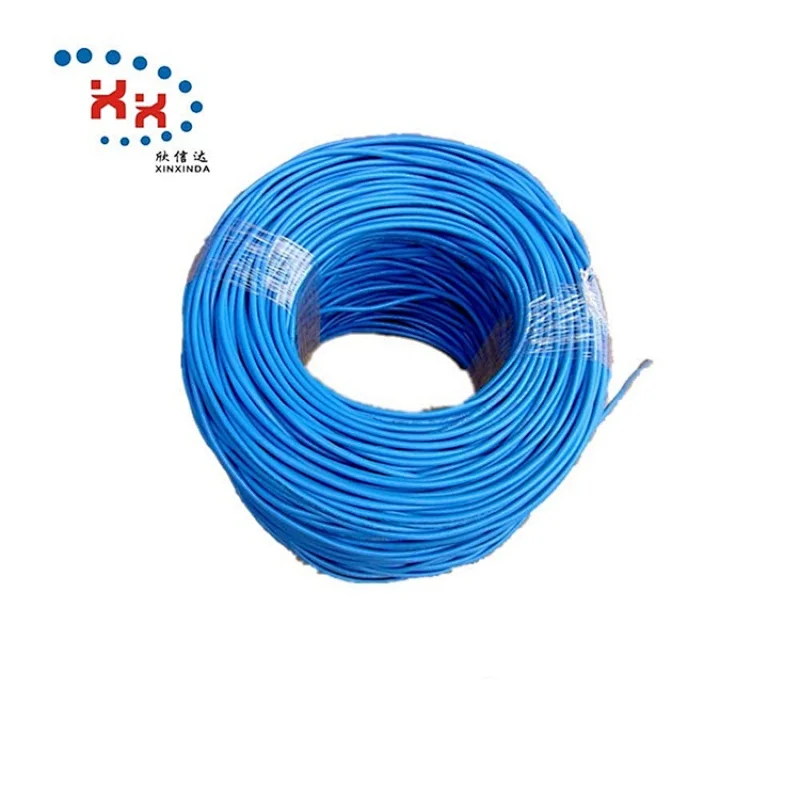

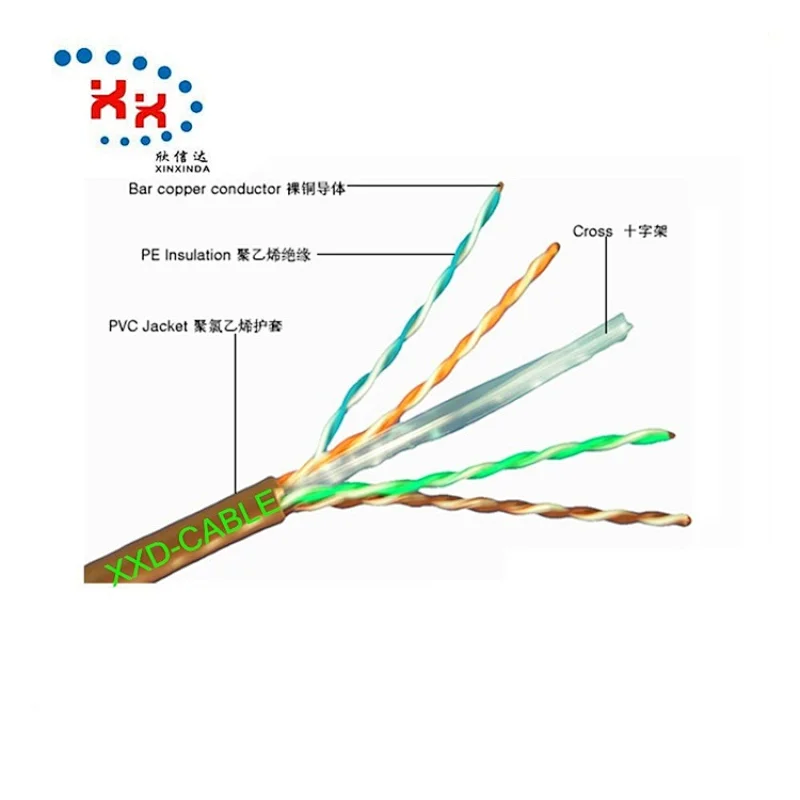

PRODUCT PICTURE
Other Info For Your Check :
1. Payment Terms
LC,T/T,Western Union and Paypal can be accepted.
2. Warranty
You have guarantee all parts be tested 100% before packed and ship them.Make sure they are all meet you. Any performance failure occurs within 12 months caused by non-human damage, you can get our after-service.
3. Packaging
Pull Out Box Packaged For UTP CAT5E Cat6 Lan Cable One piece in a box. Two pcs in a carton. The size of carton: 39*39*26cm
4. Shipping Ways
Shenzhen port By Sea,for small order andtrial order we choose
EMS/DHL/UPS/FedEx/TNT,also customrized we acceptable.
5. Shipping Time
For trial order, within 3 working days after your payment be confirmed.
For quantity order, within 7 working days after full payment be confirm to shipment.
We offer you cost-effective parts,on time delivery date and accommodating service .
So please joint us,it would be reaching win-win together.
